Reverse Osmosis Plant is extensively used for removal of dissolved chemical contamination from brackish & seawater. The offered range of Reverse Osmosis is a technology that is worn to eliminate a large majority of contaminants from water by pushing the water under pressure through a semi-permeable membrane. In this process of Reverse Osmosis Plant the dissolved ions present in the water are removed. In reverse osmosis, pressure is wielded on the side with the concentrated solution to force the water molecules across the membrane to the fresh water side. Reverse osmosis is the process of forcing a solvent from a region of high dissolve solids awareness through a membrane to a region of low dissolve solids concentration by applying a pressure in excess of the osmotic pressure. The semi permeable membranes worn for reverse osmosis have a solid polymer barrier layer in which partition takes place.
In RO (Reverse Osmosis) system the water purification process takes when it is pre-treated and filtered water is connected to the high-pressure pump where the pressure is developed and fed to the RO membranes. Purified water is referred to as product and waste water is referred to as concentrate or reject. We bring an eminent collection of RO system that is roughly used for copious drinking water applications in the industry. This water plant is manufactured using excellent quality components and the most recent technology by our skilled professionals. Our provided water plant is accessible in numerous sizes and shapes that are as per the necessities of our customers. Besides, offered water plant is availed to our customer at reasonable rates.
| Sources of Water | GIECL Treatment Scheme | ||
|---|---|---|---|
| Deep Well Water / Bore Hole Water | Chlorination, Pretreatment, R.O. System, Flushing & Cleaning System | ||
| Open Well Water / River Water / Lake Water | Chlorination, Pretreatment, UF System, R.O. System, Flushing & Cleaning System | ||
| Sea Water | Chlorination, Pretreatment, UF System, De-Salination, R.O. System, Flushing & Cleaning System | ||
Treatment Schemes
| Description | Appication |
|---|---|
| Chlorination Dosing System | For Yeast & Mould and Microbiological impurities |
| Raw Water Pump | For Supply the Raw Water to System |
| Pressure Sand Filter | For Suspended Impurities & Turbidity Removal |
| De - Chlorination Dosing System | For Chlorine removal |
| Activated Carbon Filter | For Chlorine, Color, Odor Removal |
| Sp. Anti Scalent Dosing System | For De-Scaling of R.O. System |
| Micron Cartridge Filter - Online | For Micron Impurities removal |
| High Pressure Pump | For High Pressure and Flow to R.O. System |
| Reverse Osmosis System | For TDS removal @ 99.5 % salt rejection |
| Ultra Violet Sterilizer - Online | For Bacteria and virus Removal |
| Flushing & Cleaning System | For R.O. Cleaning |
These systems are designed for any application that requires high output Reverse Osmosis equipment. We can also customize these units as per the feed water parameters, whether it be Bore well or brackish Water.
All of the components are of the highest quality, and arranged on a single compact frame, for maximum utilization of space. The equipment's can be custom designed to work with feed water that contains up to 50,000 parts per million of TDS (Total Dissolved Solids.)
The Chlorinated Water will help to remove Microbiological Impurities such as Yeast and Mold - Alge formation or any other Bacteriological Contamination
After Chlorination water will be passing though Multi Grade Sand Filtration and Granule Activated Carbon Filter which help to remove suspended Impurities Turbidity, Color, Odor and Organic Impurities.
After First Stage of Filtration Water will be passing through Micron Filtration and Reverse Osmosis System which help to remove chemical impurities such as Hardness, Total Dissolved Solids (TDS) Arsenic, Iron, Fluoride, Chloride, Sulphate or any other Harmful / Toxic Content of Source Water.
After R.O. System source water converts in to Portable Water which has lower TDS. The R.O. Product Water will be free from all types of chemical impurities present in to the source water.
The R.O. Product Water will be store in to S.S. 316 Sanitary type Product Water Storage Tank.
GIECL is Supplied Following Make
| Vessel | :- S.S. - 316, M.S.R.L, FRP - PENTAIR USA | |
| R.O. Membrane | :- Hydranautics / Dow: - All Made in USA | |
| Pumping System | :- Grundfoss | |
| Pressure Tube | :- Pentair / Eco line | |
| Dosing System | :- Edose / Grundfoss | |
| Piping and Fittings | :- uPVC Lead Free / S.S. - 316 | |

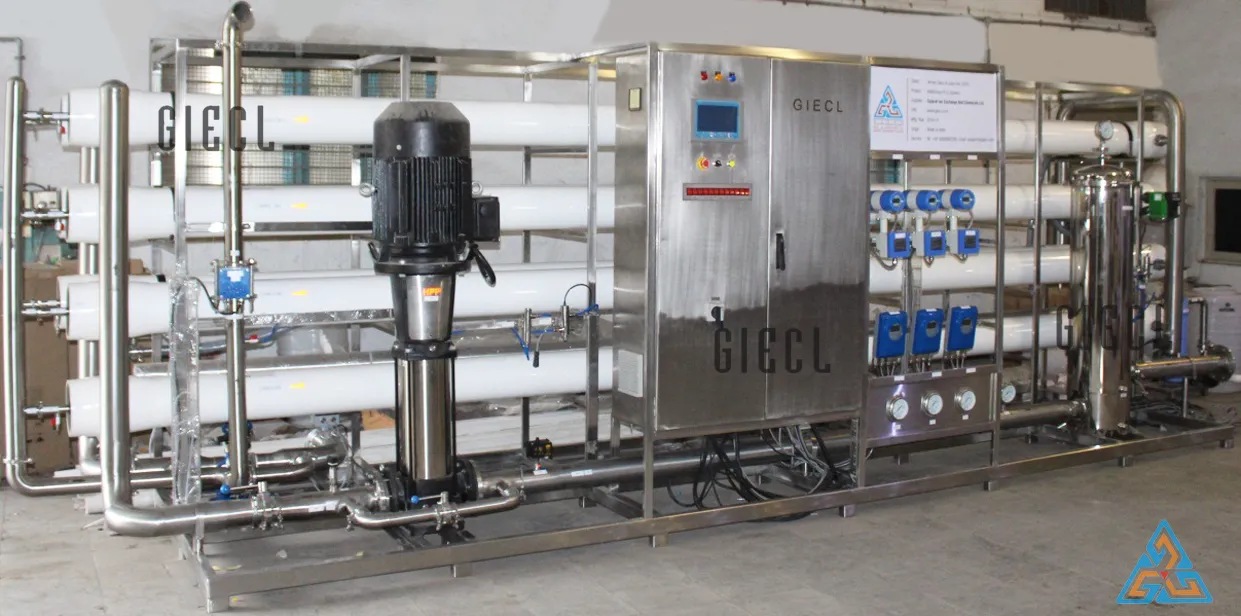

67.0 M3 / Hr. First Pass and 50 M3 / Hr. Second Pass Fully Automatic Most Advanced featured RO System
for ultra-pure water generation using ultra Sonic flow meters, online pH & TDS controller,
VFD driven Grundfos Pump with full HMI Controlled PLC Panel

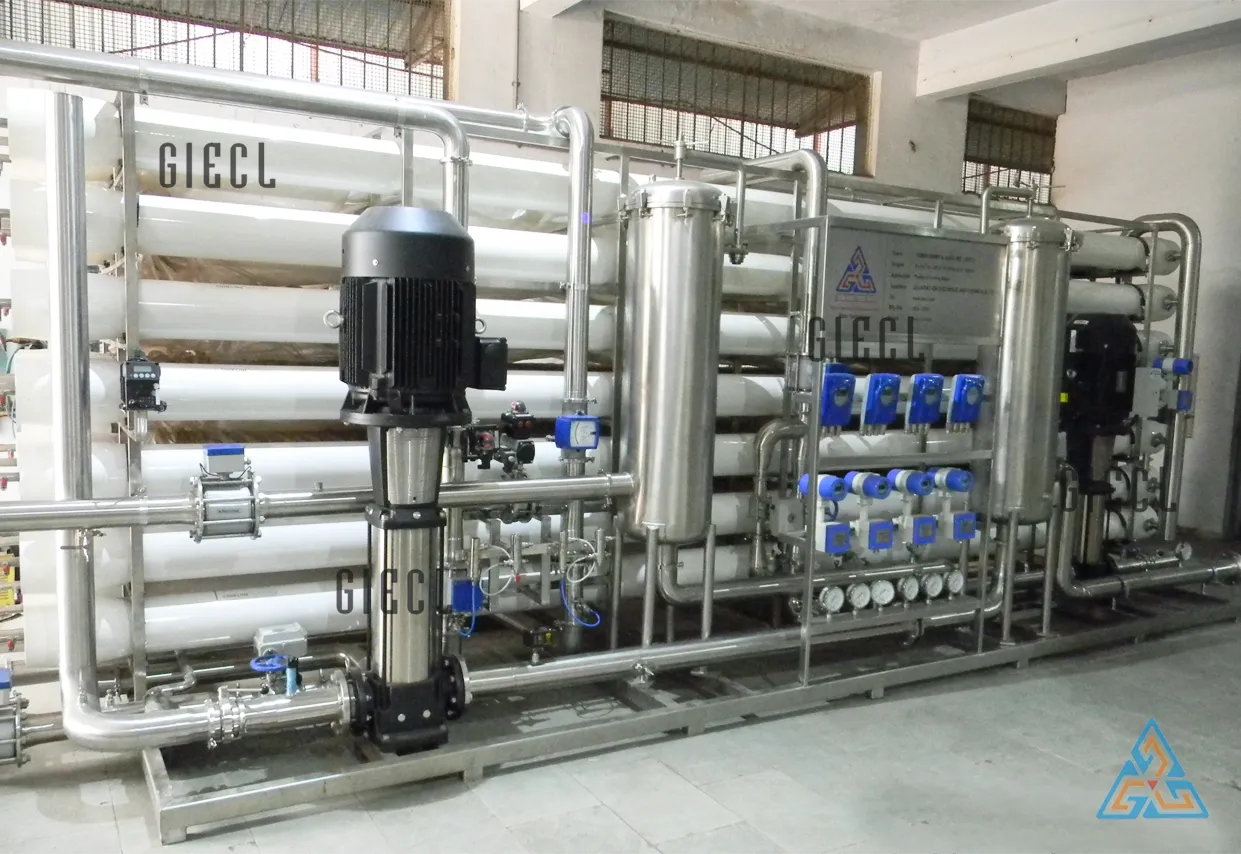

40 M3 / Hr. Fully Automatic Most Advanced featured RO System for ultra-pure water generation using
ultra Sonic flow meters, online pH & TDS controller, VFD driven Grundfos
Pump with full HMI Controlled PLC Panel
