Wrap Around Hot melt
Labelling Machine

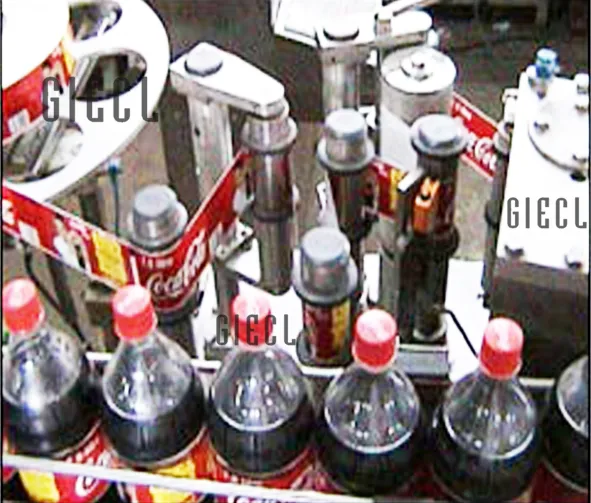

The Wrap around Hot melt labelling machine is a high speed system ideal for round bottles. It is matched with R.F.C machine and the conveyor connecting both is synchronized to ensure smooth flow of bottles. A stainless steel star wheel or feed worm in case of high speed machines will take the bottle and place in front of the label application drum. The label is delivered by the sensor controls whose response time and control speed frequency of the electronic print mark registration system is very fast, and it works 20 times faster than any other Indian Hot melt label applicator. The bottle is rolled over the label and on completion of label application, bottle will be discharged on the out feed conveyor. The synchronizing/correction speed is 350 MHZ and response time is 120 micro-seconds. For lower capacity machines to save cost we have developed our own Hotmelt unit, but for higher speed machines we use a Nordson, (U.S.A) system

All electronics used in our system are from leading suppliers such as Siemens, LG, Danfoss who have worldwide service support.

The electronic registration system is servo controlled and the fly cutter is synchronized to it to ensure that label is cut with 1 mm of the print mark.

The label cutter is PLC controlled with a hardened tool steel blade.

There is an alarm when the label reel starts to run low.

If there is no bottle on conveyor, the label will not be delivered to the drum and if there is no label on the drum no adhesive is applied
