Pharmaceutical Water Generation and Distribution System
GIECL provides complete Solution for Water treatment as per the Tailor-made requirements.

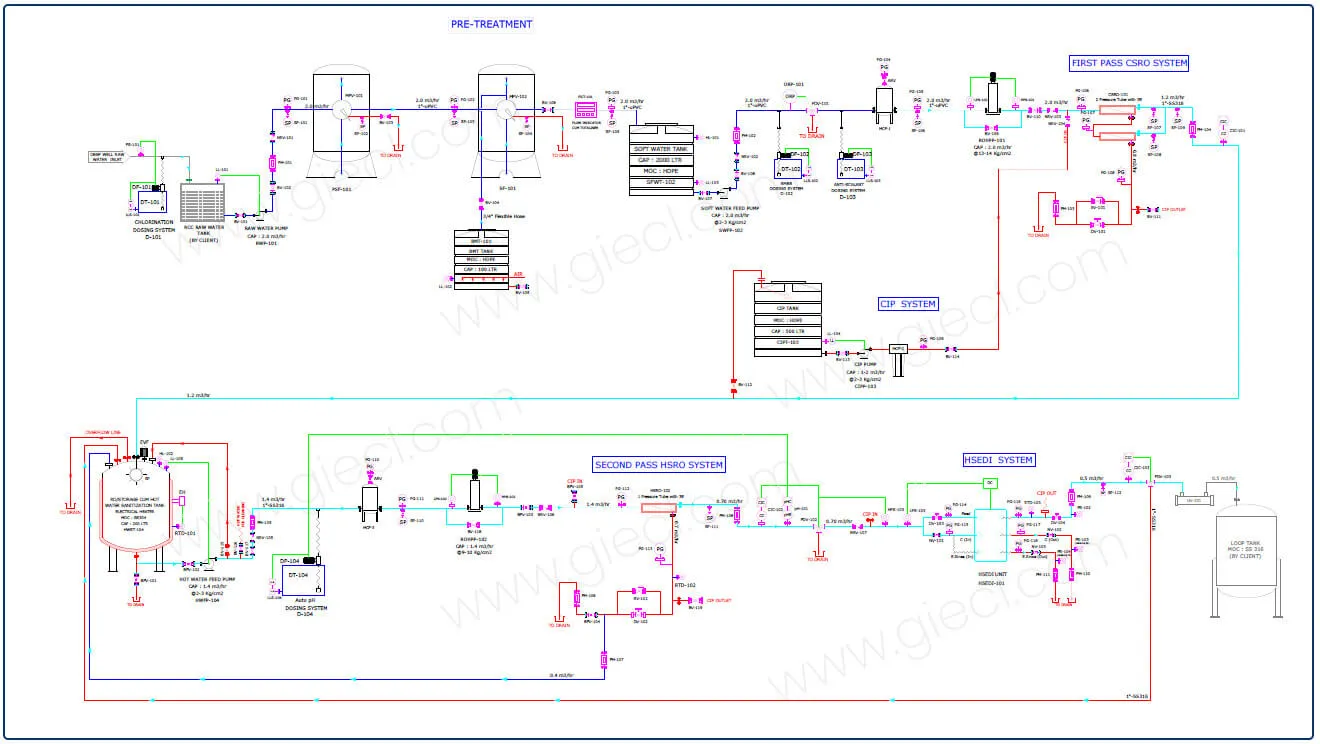

The above scheme will explain the different stage of purification and quality Raw Water Passed to Pre-treatment; First Pass Chemical Canalizable R.O. System followed by Second Pass Hot Water R.O. System with EDI system for High Purity water
GIECL Having Following Make
FRP Vessel | Pentair USA |
R.O. Membrane | Hydranautics / Dow: - All Made in USA |
Pumping System | Grundfoss |
Pressure Tube | Pentair |
Dosing System | Grundfoss |
Piping and Fittings | uPVC – Astral / S.S. – 316 – Rensa Tube |
EDI System | Electropure – Ion Pure – Qua |
Treatment Schemes
Know how the mineral water produce
Treatment Schemes
Application | Treatment Scheme | Product Water Conductivity |
||
USFDA , WFI | H.S. R.O. | H.S. R.O. | H.S. EDI System | < 1 ms/cm |
USP, EP, WFI | C.S. R.O. | H.S. R.O. | EDI System | < 1 ms/cm |
WHO - GMP | C.S. R.O. | C.S. R.O. | EDI System | < 1 ms/cm |
WHO - PWG | C.S. R.O. | C.S. R.O. | Mix Bed Unit | < 2 ms/cm |
WHO - PWG | C.S. R.O. | D.M. | Mix Bed Unit | < 2 ms/cm |

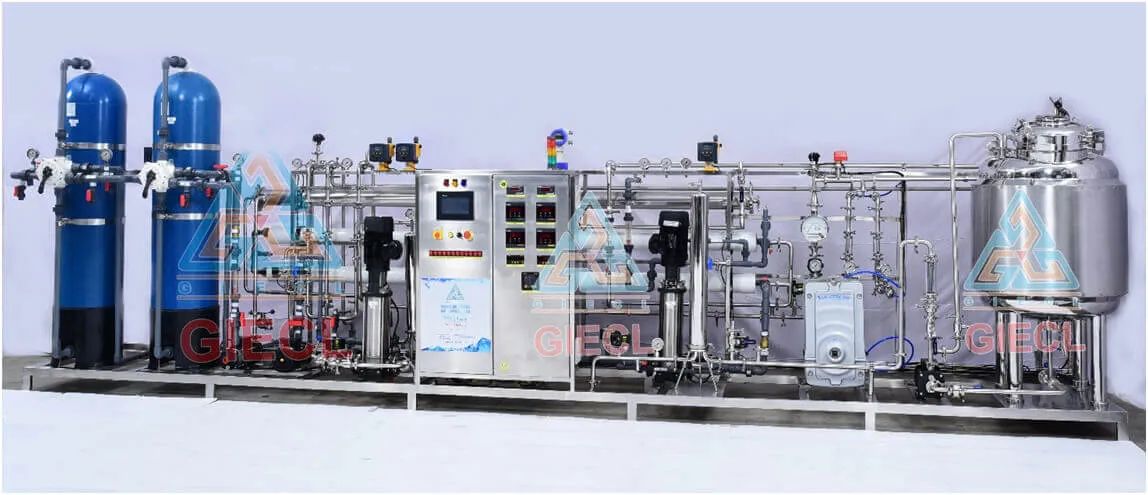

Pure Water Generation System for high purity water for WHO, GMP, WFI, USP grade supply in Changodar, Ahmedabad

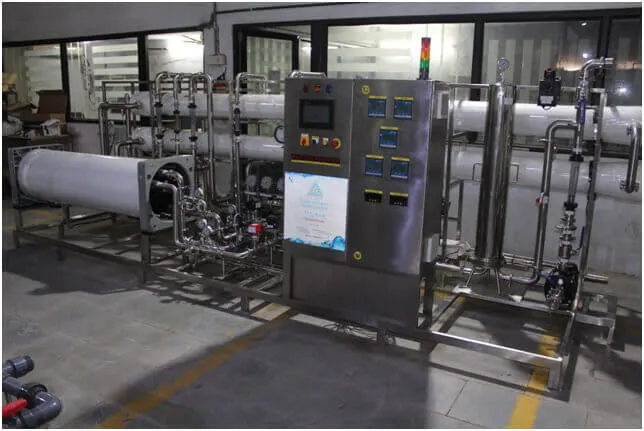

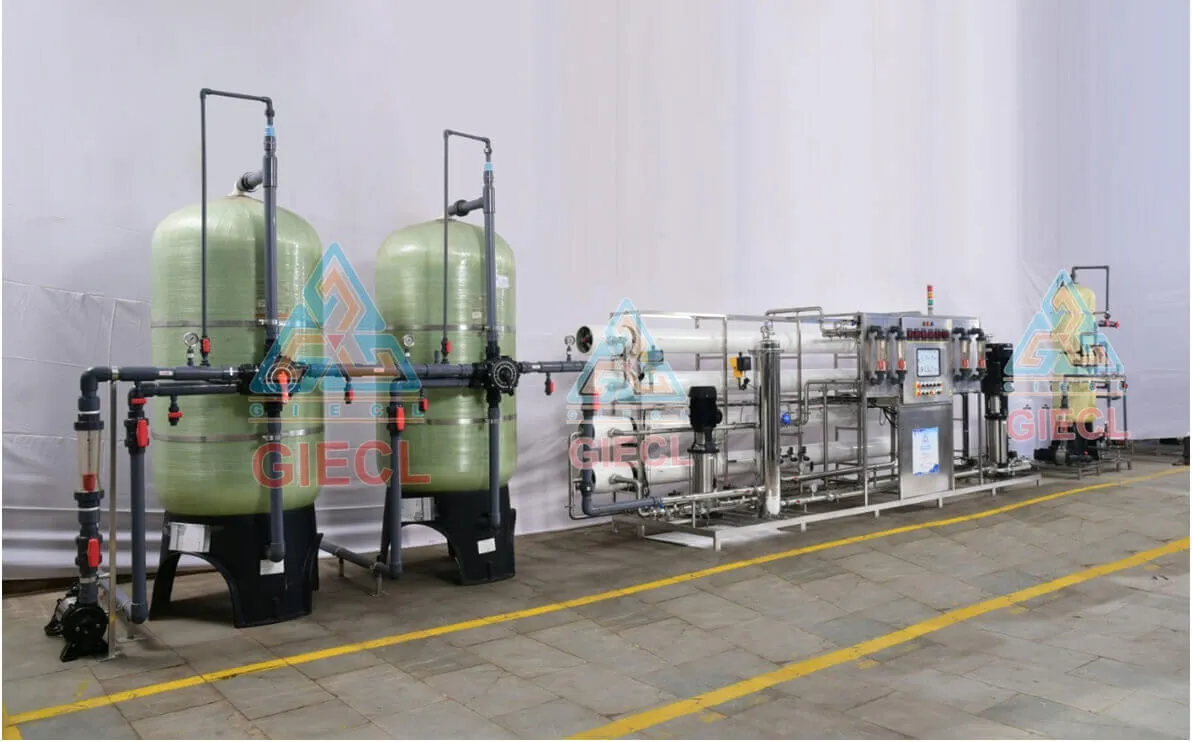

10000 LPH 1ST Pass & 8000 LPH 2ND PASS R.O. System for Low Conductivity Water feed in Mix Bed & EDI System

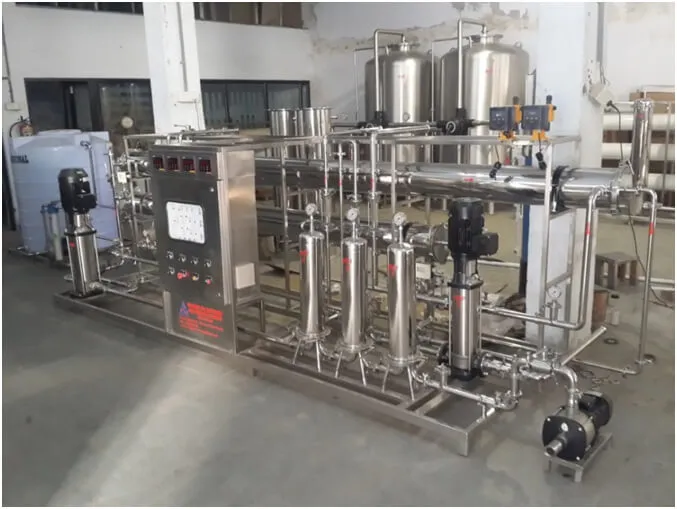

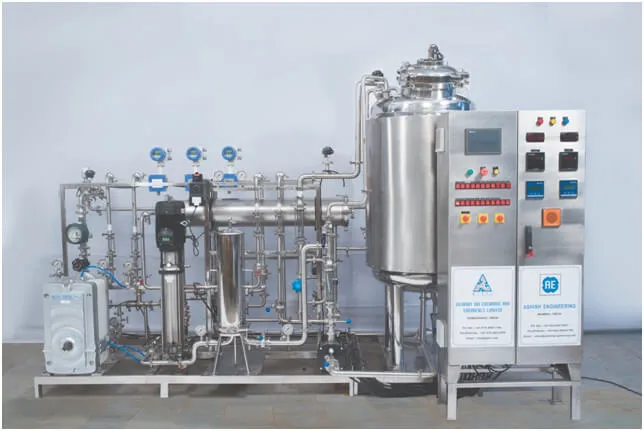

3.0 M3/Hr Two Pass R.O. System with Ultra-Pure water production for Pharmaceutical factory
Hot Water RO System with EDI System for Ultra High Purity Water
Hot Water Subitizable System for USP,EP, WFI (Water For Injection) With USP 25, 26, 27 Standards The Complete Sophisticated Hot Water Senitizable R.O. System for high purity water with Automatic Operation with Sanitary fittings. System is completely in S.S. – 316 high grade materials. The Inbuilt Hot Water generation system will provide immediate Hot Water for Sanitization with Tank and Pump provided with system with all controls and Safety.

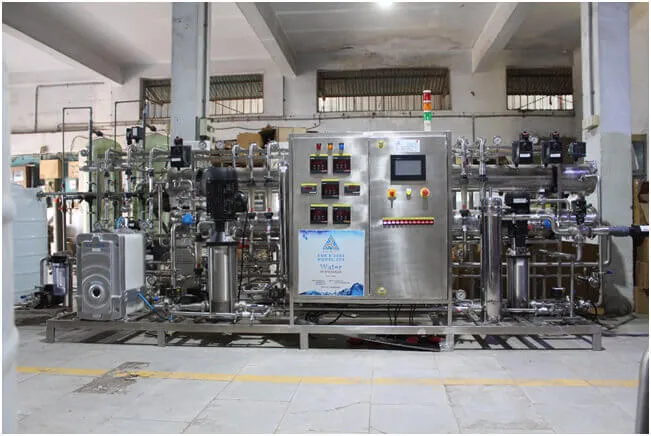

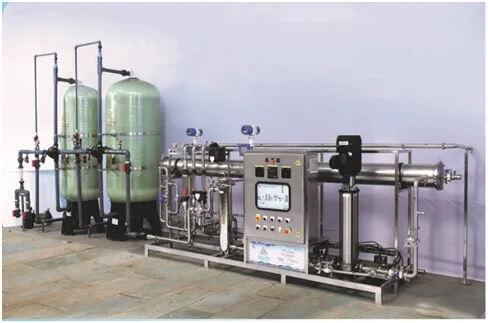

2000 LPH Two Pass RO System with EDI System for produce Low Conductivity pure water use in Pharma Industries supply in Zimbabwe

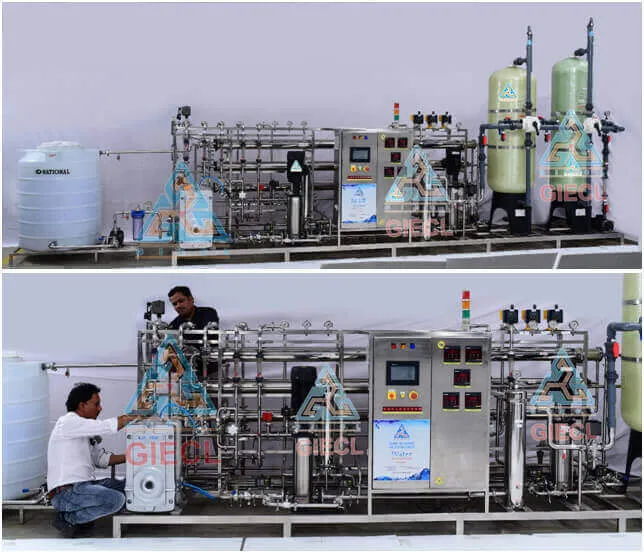

1000 LPH Two Pass RO with EDI System with CIP, MGF and softener supply in Vatva, Ahmedabad
10000 LPH RO system with Ion Pure EDI Module supply in Kheda, Gujarat.

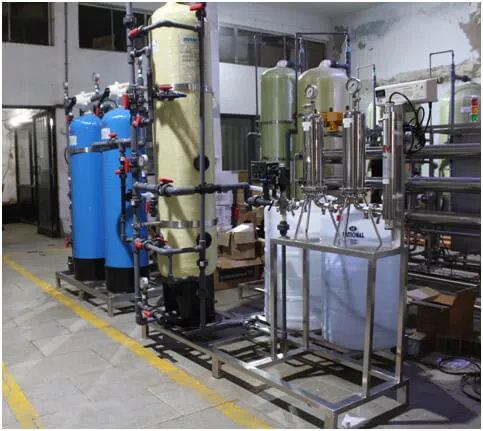

R.O. System with D.M. Plant with Mix Bed Unit (M.B. Unit) For GMP, WHO and SCH M for Tablet, Liquid Product.

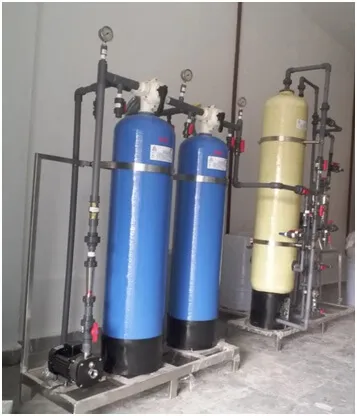

Mix Bed Plant with uPVC piping and Absolute Filters and U.V. System
The Conventional Water Treatment System for Pharmaceuticals application to produce high quality water for Tablet, Liquid, Process water and equipments washing.
The Raw Water pass through the R.O. System with Cation and Anion Exchanger and further it will pass through the Mix bed Unit which will allow producing the typical < 2 Conductivity water. The High Purity Water will further pass through the 1- & 0.2-micron Absolute Micron Cartridge filter and U.V. System and store into the Close Loop Tank.
The Complete System will be FRP and S.S. only with Pressure Gauges, Pressure Switches and Safety features incorporate with Electric control panel.
